Vision Inset
24/10/2019 09:53
Vision Inset without Trim

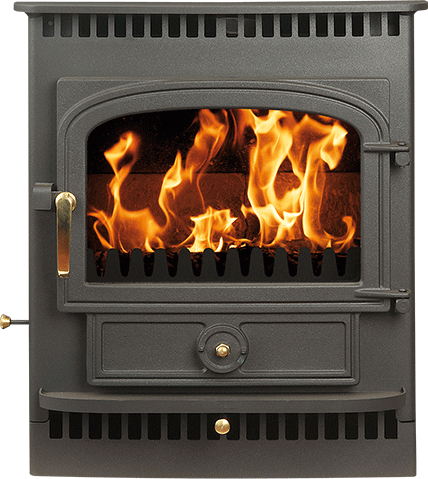

Vision Inset with Fettle

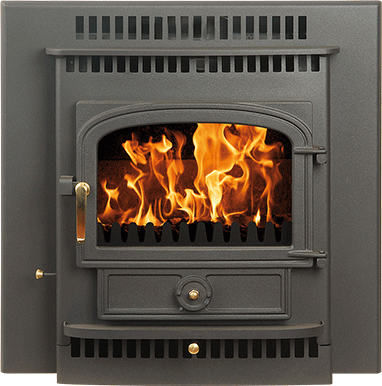

Vision Inset with Convection Box

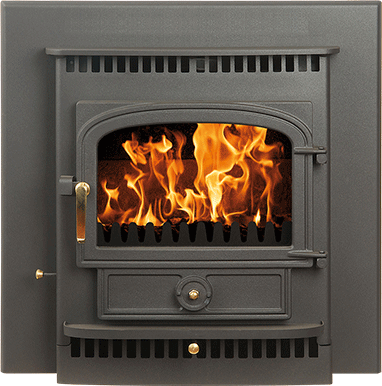

Vision Inset with Fettle and Trim
From £1788 inc VAT
The Vision Inset incorporates all of the wonderful Clearview benefits found in our free-standing Vision stoves, but it can be installed in a fireplace opening where the hearth depth is limited and the least structural disruption is required. The clever double skin design allows for heat to be drawn from the back and top of the stove body out into the room. The deep position of the flue outlet combined with the sharper angle of the flue allows for an easier installation where there is both a lintel and fire surround.
Features
- 5kW output.
- Unique 'Inset Adaptor' design for easy fitting and liner connection.
- One large double-glazed door that gives an impressive, uninterrupted view of the flames.
- Clearview hot air-wash system for clean burning without fuss or pampering.
- Independent up draft and down draft air distribution system for maximum response and control.
- Bottom air inlet makes full use of any external air inlets whilst maximising pre-heating and reducing base temperature.
- Heavy steel construction — welded inside and out for durability and long life.
- All “wear and tear” stove parts are easily replaceable.
- Refractory lining, promoting clean combustion.
- Multi-fuel grate, for easy lighting and rapid response.
- Solid brass knobs and a removable door handle.
- Stainless steel ash pan for long life and easy ash removal.
- Rotary grate for easy riddling.
- Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
- Adjustable levelling bolts.
- Takes up to 300mm (12 inch) logs.
- 3yrs Manufacturers Guarantee
Specifications
| Heat Output | 1kW to 5kW |
| Weight | 120Kgs (without boiler) |
| Flue Outlet | 150mm (6") |
| Boiler Options | 8,000Btu |
| Max Log Length | 250mm (10") |
Options
- Available in a range of seven colours to compliment your decor.
- Satin chrome door handles and fittings.

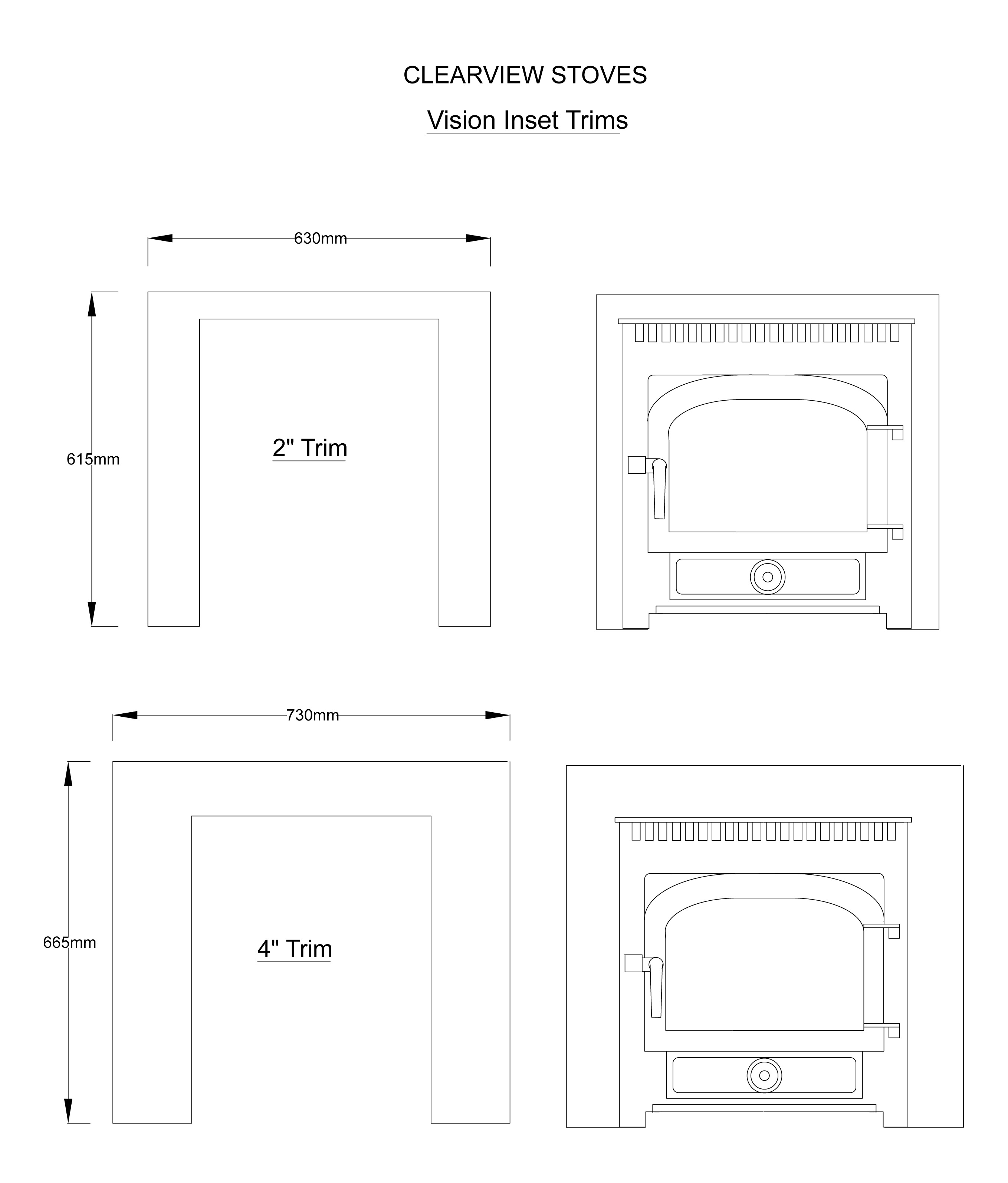

- Two standard trim options, 2” or 4”. These trims act as a frame around the stove and cover any gap between the opening and the stove body. Click for detail.

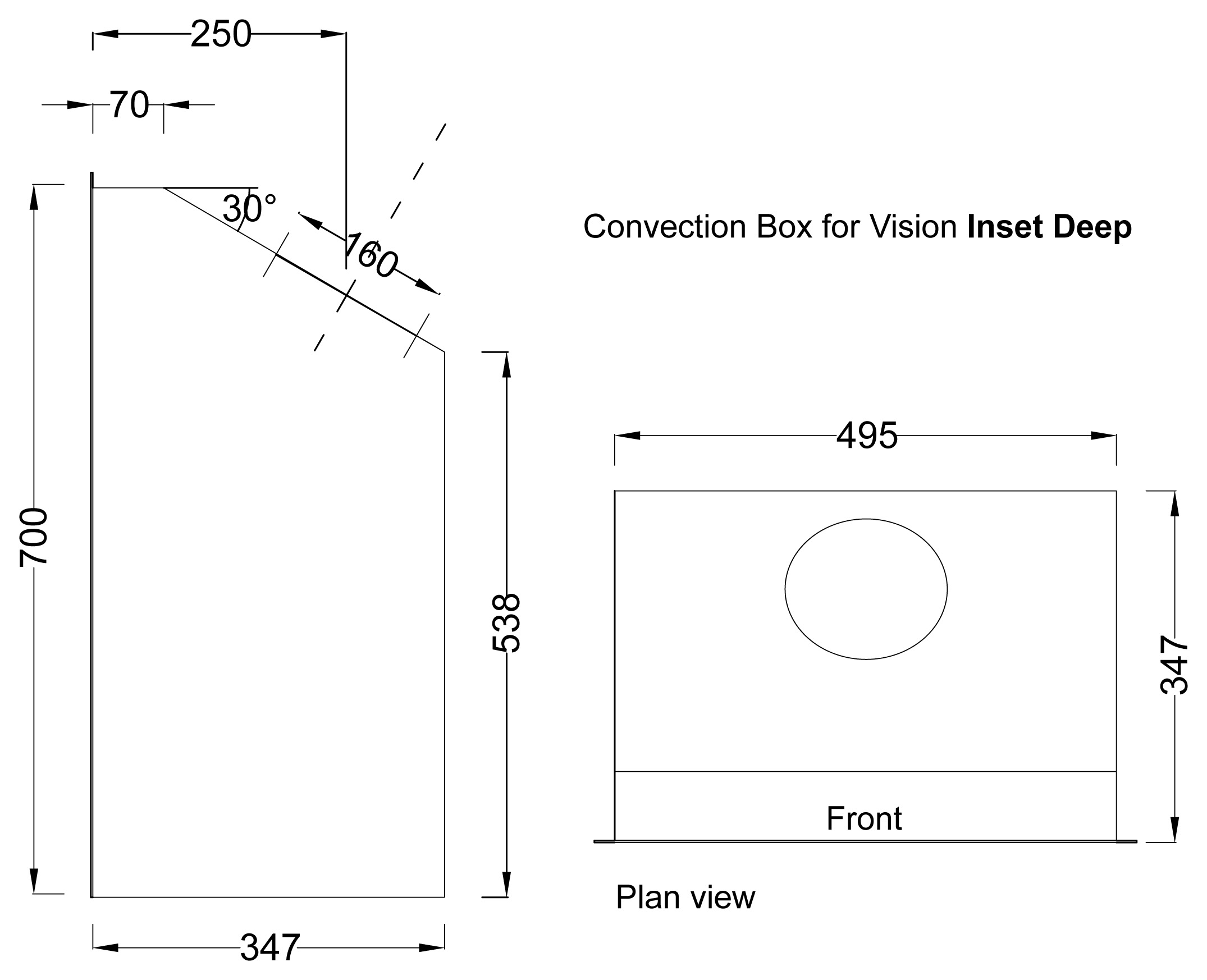

- Convection Box Casing option to improve heat output to the room. This box fits around the body of the stove within the wall, allowing air to circulate around the whole of the stove. This generates greater heat output to the room and reduces the amount of heat lost to the surround. Click for details

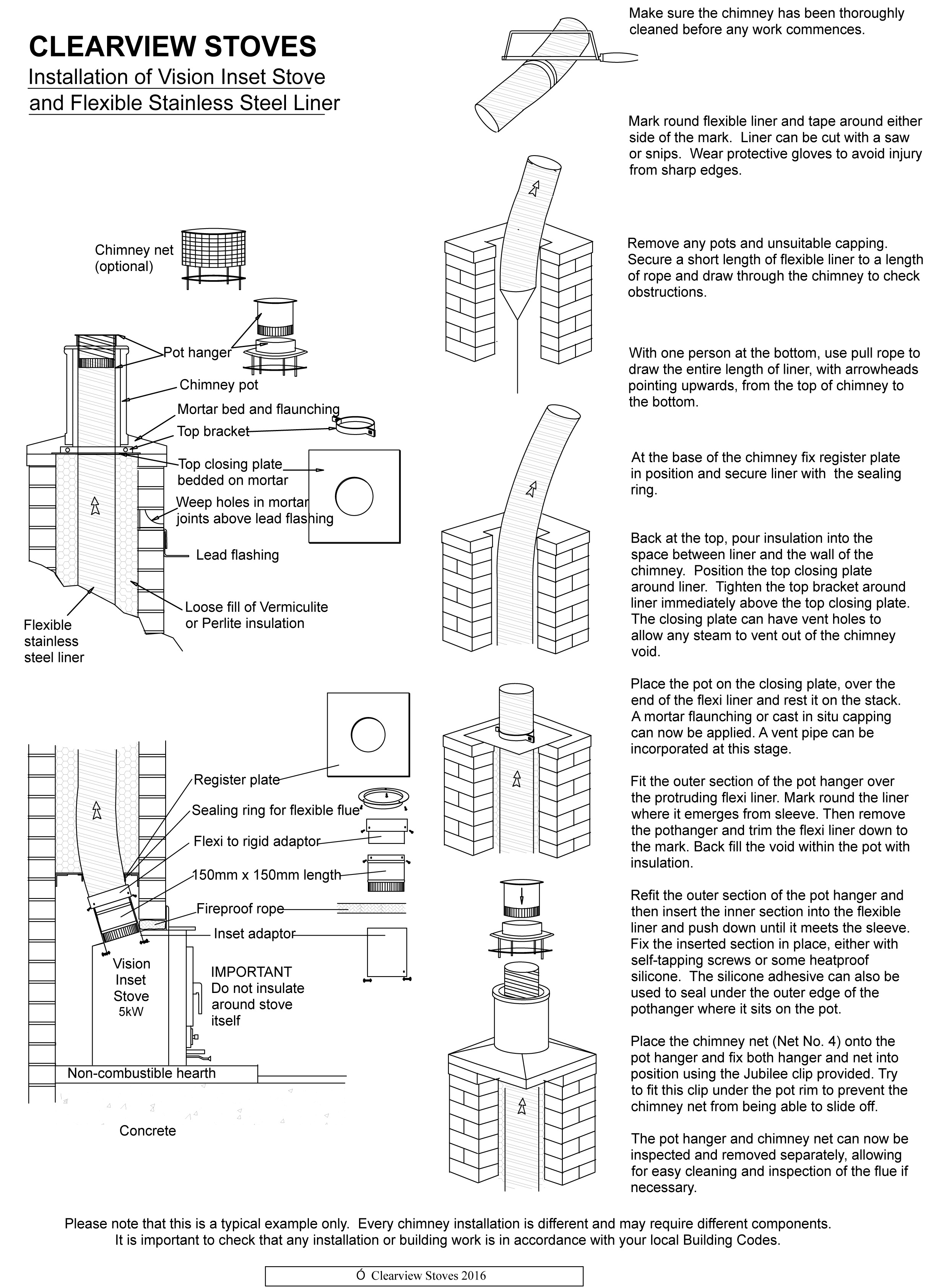

- For a typical Inset installation with flexible liner, click here.
Boiler Options
- 8,000 Btu stainless steel boiler.
Colour Options
Range of colours available to suit your room, you can purchase spray paint etc.
Charcoal Grey
Conifer Green
Golden Fire Brown
Honey Glow Brown
Mahogany Brown
Metallic Black
Welsh Blue Slate
Clearview's Colour Disclaimer.
We have made every effort to reproduce colours on screen as accurately as possible. Unfortunately, we cannot guarantee an exact colour match. Colours will vary depending on your screen settings and resolution. In choosing your colour, we always recommend you request a free sample.

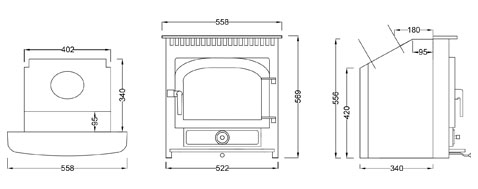

Technical Diagrams
Vision Inset
