Vision 500
24/10/2019 09:52
Flat Top on 50mm (2") Legs

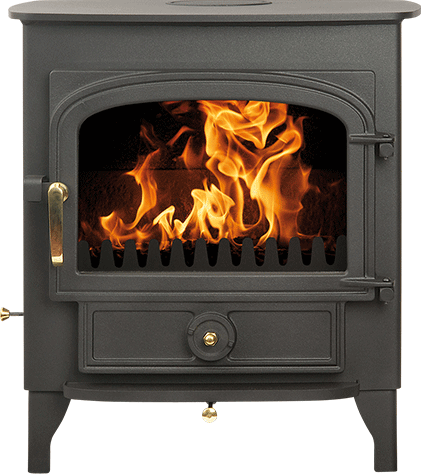

Flat Top on 100mm (4") Legs

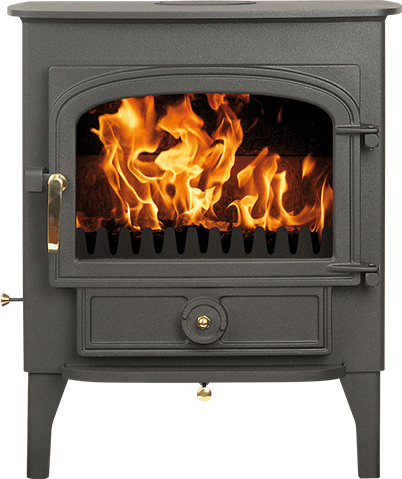

Flat Top on 152mm (6") Legs

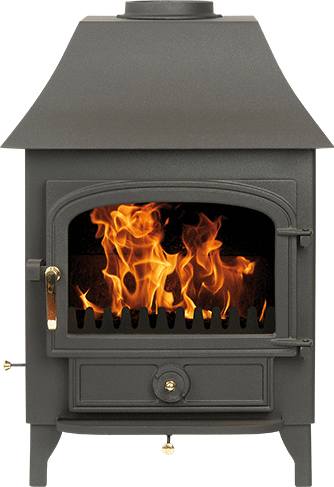

Low Canopy on 100mm (4") Legs

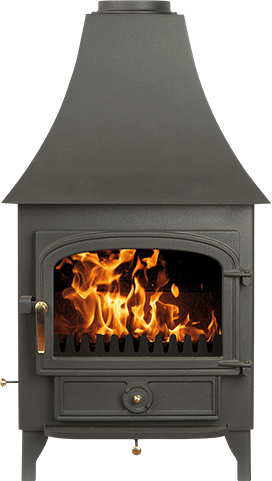

High Canopy on 100mm (4") Legs

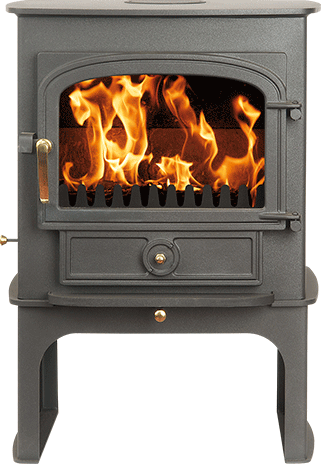

Flat Top on 300mm Log Store

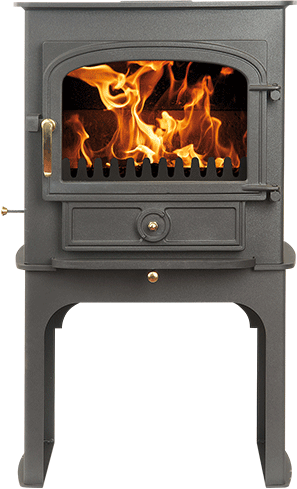

Flat Top on 450mm Log Store
From £1788 inc VAT
The Clearview Vision 500 was the first multi-fuel stove approved for burning wood and authorised fuel in UK smoke control areas. Its unmistakeable classic Clearview design makes it suitable for almost every situation. It has a large single door that provides an uninterrupted view of the fire and a deep firebox taking 15" long logs with an integral multi-fuel grate.
Features
- 8kW Output.
- One large double glazed door that gives an uninterrupted view of the flames.
- Clearview hot air-wash system for really clean burning without fuss or pampering.
- Independent up draft and down draft air distribution system for maximum response and control.
- Heavy steel construction — welded inside and out for durability and long life.
- All “wear and tear” stove parts are easily replaceable.
- Refractory lining, promoting clean combustion.
- Multi-fuel grate, for easy lighting and rapid response.
- Solid brass knobs and door handles.
- Stainless steel ash pan for long life and easy ash removal.
- Rotary grate for easy riddling.
- Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
- Large hotplate surface for coffee pot, kettle and cooking. Flat top version only.
- Takes up to 380mm (15") logs.
- 3 yrs Manufacturers Guarantee.
Specifications
| Heat Output | 1.5kW to 8kW |
| Weight | 125Kgs (without boiler) |
| Flue Outlet | 150mm (6") |
| Boiler Options | 10,000Btu |
| Max Log Length | 380mm (15") |
Options
- Available in a range of seven colours to compliment your decor.
- Satin chrome door handles and fittings.
- Optional top or rear flue outlet.
- Smoke Control Kit (cannot be retro fitted).
- External air box or external air plinth for a direct connection to an outside air supply.
- Heat Shield for stove and connecting flue to reduce clearances to combustibles. Stove heat shield reduces clearance behind the stove to 300mm
Boiler Options
- 10,000 Btu. stainless steel boiler
Colour Options
Range of colours available to suit your room, you can purchase spray paint etc.
Charcoal Grey
Conifer Green
Golden Fire Brown
Honey Glow Brown
Mahogany Brown
Metallic Black
Welsh Blue Slate
Clearview's Colour Disclaimer.
We have made every effort to reproduce colours on screen as accurately as possible. Unfortunately, we cannot guarantee an exact colour match. Colours will vary depending on your screen settings and resolution. In choosing your colour, we always recommend you request a free sample.

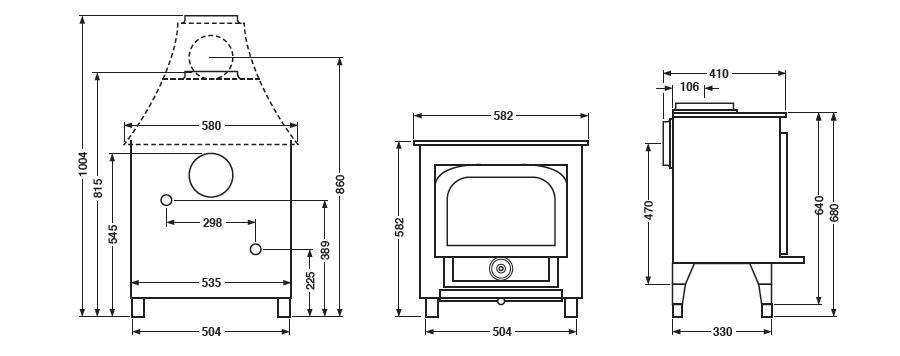

Technical Diagrams
Vision 500
