Solution 500 & 500SB

Admin User 24/10/2019 09:51

Solution 500 with Plain Sides

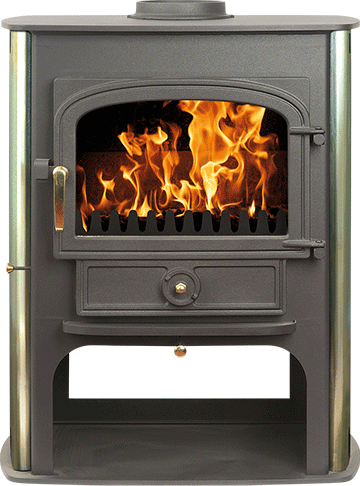

Solution 500 with Stainless Steel Sides

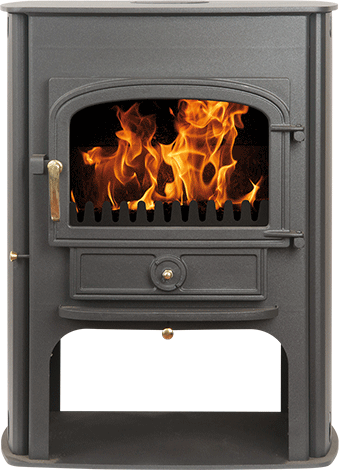

Solution 500SB with Plain Sides

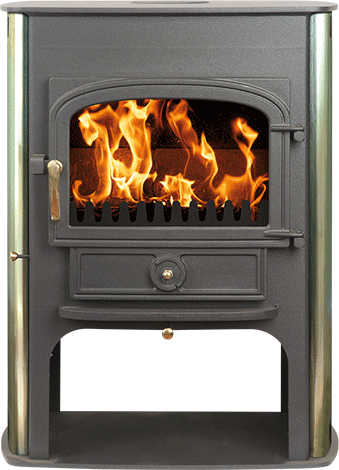

Solution 500SB with Stainless Steel Sides

From £2256 inc VAT

These highly efficient clean burning convection stoves bring elegance and comfort to any home. The hot air-wash system gives fascinating flame patterns and crystal clear glass, and their convection casing reduces the required clearance from combustibles to 200mm each side. The casing is available in stainless steel option to give a more contemporary look.

Solution 500SB

The Solution 500SB has all the same features as the Solution 500 plus the extra benefit of a combined boiler that is located above the firebox and is heated by the flu-gases. This results in the glass remaining cleaner than conventional boiler stoves. We consider the stove capable of heating a standard cylinder and 2-3 small radiators, however there are many factors that will determine how much contribution the boiler can efficiently make to a hot water system. We are happy to offer more guidance in relation to individual requirements and systems.

Features

8kW heat output.
One large Clearview double-glazed door that gives an impressive view of the flames.
Clearview hot air-wash system for really clean burning without fuss or pampering.
Independent up draft and down draft air distribution system for maximum response and control.
Refractory lining, and tertiary air supply, promoting super clean combustion.
Multi-fuel grate, for easy lighting and rapid response.
Heavy steel construction — welded inside and out for durability and long life.
Convection casing ensures a lower surface temperature, allowing closer installation to vulnerable surfaces.
All “wear and tear” stove parts are easily replaceable.
Solid brass knobs and door handles.
Stainless steel ash pan for long life and easy ash removal.
Rotary grate for easy riddling.
Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
Base plate to provide additional floor protection.
Hotplate surface for coffee pot or kettle.
Built in fuel store for logs or morning kindling.
Takes up to 15 inch logs.
3 yrs Manufacturers Guarantee

Solution 500SB Extra Features

6kW heat output to room plus 10,000Btu (3kW) to boiler.
Rear 150mm flue outlet. REAR ONLY
The boiler has four 28mm female connections.

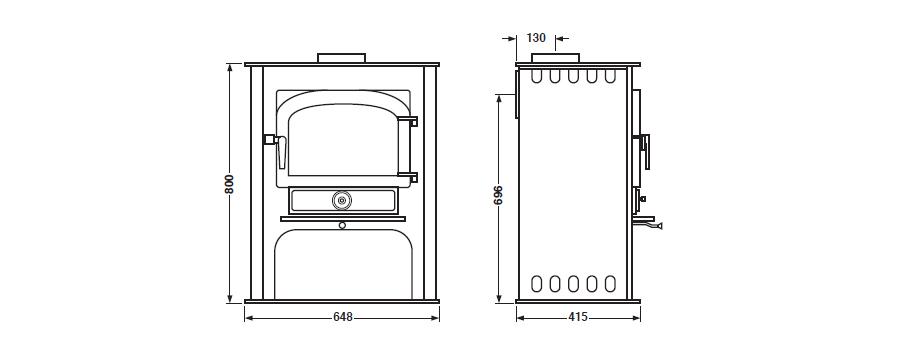

Specifications

Solution 500
Heat Output	1.5kW to 8kW
Weight	165Kgs
Flue Outlet	150mm (6")
Boiler Options	None
Max Log Length	380mm (15")
Solution 500SB
Heat Output	1.5kW to 6kW
Weight	172Kgs
Flue Outlet	150mm (6")
Boiler Options	10,000Btu Connections A, B, C & D
Max Log Length	380mm (15")

Options

(Solution 500 Only)

Available in a range of seven colours to compliment your decor.
Satin chrome door handles and fittings
Optional top or rear flue outlet. The Solution SB is a rear flue only stove.

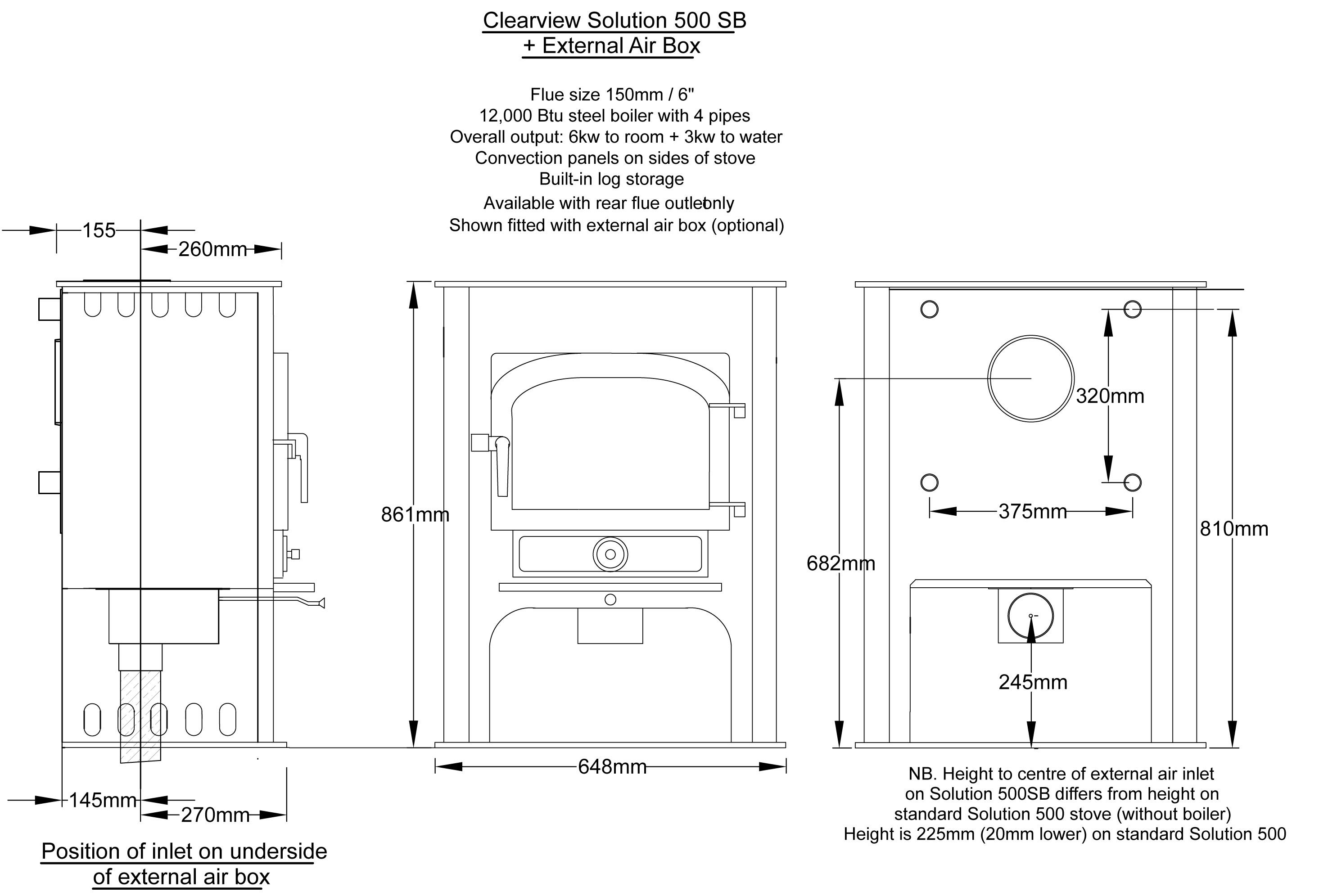

External air system, for a direct connection to an outside air supply.
Smoke Control Kit (cannot be retro fitted) - not the Solution SB.
Double Rear Heat Shield for further reducing clearance to combustibles behind the stove to 125mm - not the Solution SB

Colour Options

Range of colours available to suit your room, you can purchase spray paint etc.

Charcoal Grey

Conifer Green

Golden Fire Brown

Honey Glow Brown

Mahogany Brown

Metallic Black

Welsh Blue Slate

Clearview's Colour Disclaimer.

We have made every effort to reproduce colours on screen as accurately as possible. Unfortunately, we cannot guarantee an exact colour match. Colours will vary depending on your screen settings and resolution. In choosing your colour, we always recommend you request a free sample.
