Solution 400
24/10/2019 09:50
Solution 400 with Plain Sides

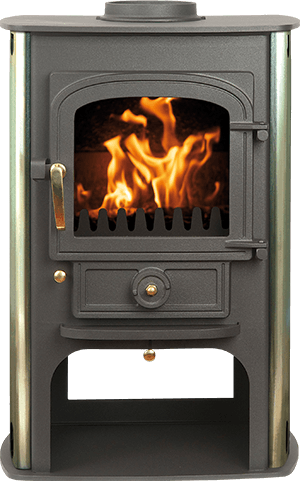

Solution 400 with Stainless Steel Sides
From £2010 inc VAT
The Clearview Solution 400 is a smaller version of the Solution 500. It is a highly efficient clean burning convection stove that brings elegance and comfort to any home. The hot air-wash system gives fascinating flame patterns and crystal clear glass, and its convection casing allows installation into spaces not suitable for all stoves. The stainless steel side panel option gives the stove a more contemporary look.
Features
- A Clearview double-glazed door that gives an impressive, uninterrupted view of the flames
- Clearview hot air-wash system for really clean burning without fuss or pampering
- Independent up draft and down draft air distribution system for maximum response and control
- Refractory lining and tertiary air supply, promoting super clean combustion
- Heavy steel construction welded inside and out for durability and long life
- Solid brass knobs and door handles
- Convection casing ensures a lower surface temperature, allowing closer installation to vulnerable surfaces. Reduces clearances to combustibles - 200mm to the sides, 250mm from the back.
- All wear and tear stove parts are easily replaceable
- Stainless steel ash pan for long life and easy ash removal
- Rotary grate for easy riddling
- Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals
- Hotplate surface for coffee pot or kettle
- Built in fule store for logs or kindling
- 3 years manufacturers guarantee
Specifications
| Heat Output | 1kW to 5kW |
| Weight | 135Kgs |
| Flue Outlet | 150mm (6") |
| Boiler Options | None |
| Max Log Length | 250mm (10") |
Options
- 7 colours available
- Satin door handles and fittings
- Optional top or rear flue outlet
- Flue pipe heat shield - useful when conecting to twin wall flue.
- External air box for direct connection to an outside air supply
- Smoke Control Kit (Cannot be retro fitted)
- Double rear heat shield for further reducing clearance to combustibles to 125mm

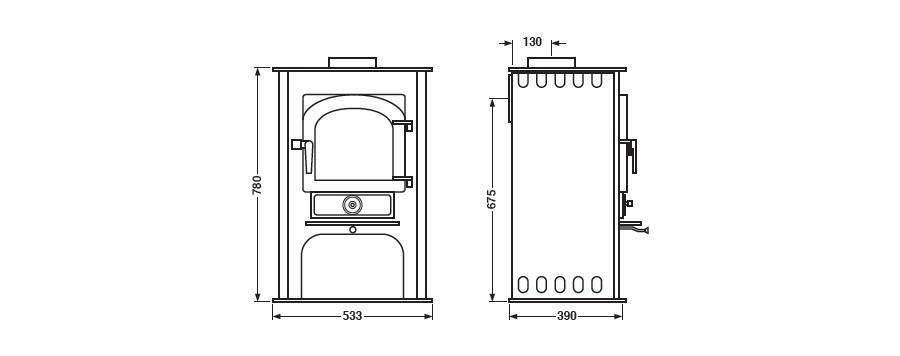

Technical Diagrams
Solution 400
