Pioneer 400
24/10/2019 09:47
Flat Top on 50mm (2") Legs

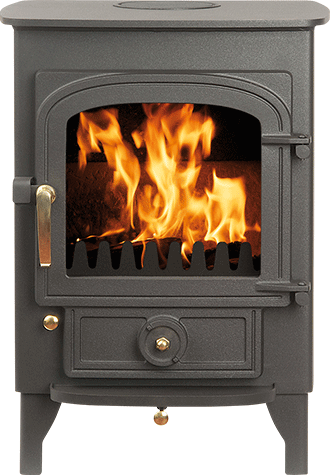

Flat Top on 100mm (4") Legs

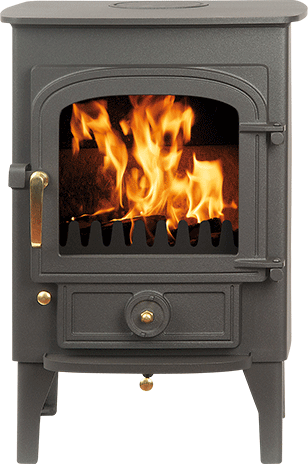

Flat Top on 152mm (6") Legs

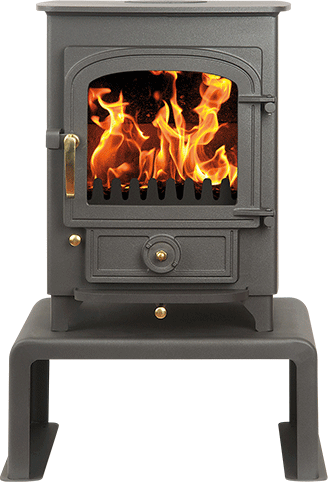

Flat Top on 254mm (10") Plinth
From £1500 inc VAT
The Clearview Pioneer 400 is the highest specification small stove ever built. So fuel-efficient it can burn as little as one kilo of wood an hour, stay in over-night and even heat your water, if the 8,000 BTU boiler is added. This rugged and stylish stove is equally at home in a country cottage, modern apartment and even a mobile home or a boat.
Features
- 5kW heat output.
- One double-glazed door that gives an uninterrupted view of the flames.
- Clearview hot air-wash system for really clean burning without fuss or pampering.
- Independent up draft and down draft air distribution system for maximum response and control.
- Refractory lining, promoting super clean combustion.
- Multi-fuel grate, for easy lighting and rapid response.
- Heavy steel construction — welded inside and out for durability and long life.
- Solid brass knobs and door handles.
- All “wear and tear” stove parts are easily replaceable making maintenance comparatively effortless.
- Stainless steel ash pan for long life and easy ash removal.
- Rotary grate for easy riddling.
- Adjustable levelling bolts, for easy adjustments on uneven hearths.
- Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
- Hotplate surface for coffee pot or kettle.
- Takes up to 250mm (10 inch) logs.
- 3 yrs Manufacturers Guarantee
Specifications
| Heat Output | 1kW to 5kW |
| Weight | 100Kgs (without boiler) |
| Flue Outlet | 150mm (6") |
| Boiler Options | 8,000Btu |
| Max Log Length | 250mm (10") |
Options
- Available in a range of seven colours to compliment your decor.
- External air box or external air plinth, for direct connection to an outside air supply.
- Satin chrome door handles and fittings.
- Optional top or rear Flue Outlet.
- Smoke Control Kit (cannot be retro fitted)
- Heat Shield for stove and connecting flue to reduce clearances to combustibles.
Boiler Options
- 8,000 Btu stainless steel boiler.
Colour Options
Range of colours available to suit your room, you can purchase spray paint etc.
Charcoal Grey
Conifer Green
Golden Fire Brown
Honey Glow Brown
Mahogany Brown
Metallic Black
Welsh Blue Slate
Clearview's Colour Disclaimer.
We have made every effort to reproduce colours on screen as accurately as possible. Unfortunately, we cannot guarantee an exact colour match. Colours will vary depending on your screen settings and resolution. In choosing your colour, we always recommend you request a free sample.

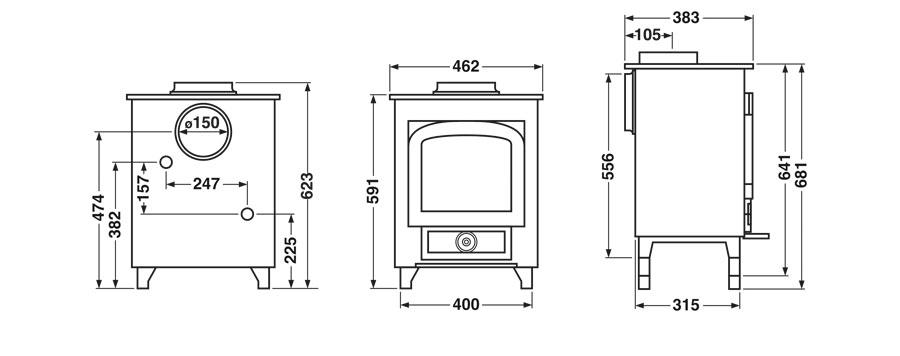

Technical Diagrams
Pioneer 400
